APS/G 250

See cars and bikes being built for the salt

Moderator: DLRA

Stayt`ie
Posts: 1026
Joined: Fri May 13, 2005 11:47 pm
Location: Mackay

Re: APS/G 250

Post by Stayt`ie »

ya done good mate :D ,, you got a GoPro to record all that data in real time ??
First Australian to ride a motorcycle over 200mph at Bonneville,,,
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Stayt`ie wrote: Wed Oct 17, 2018 6:06 pm ya done good mate :D ,, you got a GoPro to record all that data in real time ??
Thanks Dave and Ron

Yes Ron, I have a Contour HD Camera, just got to turn it on when I do a run :lol:

Pete :)
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Hi everyone

I could not get to Speedweek this year for many reasons.

Things have improved and I should be back on deck in September.

I will definitely be at Speedweek 2020.

Hopefully with my Bike, if not with my Camera.

Got a few ideas as far as changing over to Unleaded.

Based on my research, I've decided that Sunoco SS100 is the way to go in a high rpm Smoker and not need new Carbs.

This will mean I have to lower my Compression a little , but I still want to have .8mm squish.

I am looking at the options using what I have in my parts bin.

I have a set of RGV SP heads, one is slightly damaged, should be repairable.

I did design two updated squish/combustion shapes on Fusion360 last year,


11.5cc for 100 Unleaded and 9.5cc for E85 based on info published by two ex Aprilia Works employee, but I could not proceed with that.

This might now be the way to go if I repair the SP Heads and get them machined to the update spec. If they don't work I'll have to use std Heads :lol: .

Anyway what ever happens I'll see you all in March.

Pete :)
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

To everyone going to DLRA Speedweek, Go Fast, Stay Safe and #1 thing Have Fun!!!

I myself am not sure about my plans going forward.
I do have my two RGV/Aprilia based engines,
One is back to Standard RGV Spec and the other is now 300cc with a 61mm Bore Kit.
I still have the M Class RGV and the Long Red A Class Chassis.
I'll post again once I have some updates.

Pete :)
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

I have finally got something happening. Have a problem with my 250 engine and I put it aside (needs a major rebuild).
I've had the 300cc engine built for a while now, so I fitted into the RGV chassis for some testing.
It will eventually go into the long Bike for A/G/350 or A/F/350 Class.

Click here to learn how to add YouTube Videos to your phpBB forum
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
Stayt`ie
Posts: 1026
Joined: Fri May 13, 2005 11:47 pm
Location: Mackay

Re: APS/G 250

Post by Stayt`ie »

g'day Pete, good to hear from ya mate :D
First Australian to ride a motorcycle over 200mph at Bonneville,,,
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Stayt`ie wrote: Fri Apr 23, 2021 10:08 pm g'day Pete, good to hear from ya mate :D
Hey Ron

Hopefully I'll be back in 2022 with the Long Bike.

Pete :D
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Well I spent the last few days doing some Carb adjustment and short test runs and finally today the 300 engine runs strong and clean. 😁
It was the fifth attempt as it would not run properly with the Stock Carbs I had fitted for the first start up.
So today I fitted the Lectrons and bingo (they are set up for the fully modified 250, to start safe I richened up the Power Jets that supply the high rpm before fitting to the 300).
Low end EGTs read spot on both sides and in the safe range right through the rev range.
So it's ready for the Dyno in the next week or two, depends on when they can fit me in.

Pete
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
Stayt`ie
Posts: 1026
Joined: Fri May 13, 2005 11:47 pm
Location: Mackay

Re: APS/G 250

Post by Stayt`ie »

Where is the dyno you use Pete ?,, reason I ask is, have a mate in Peterborough who travels down to Adelaide to get his dyno tuning done,, im thinking if there is one closer ???
First Australian to ride a motorcycle over 200mph at Bonneville,,,
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

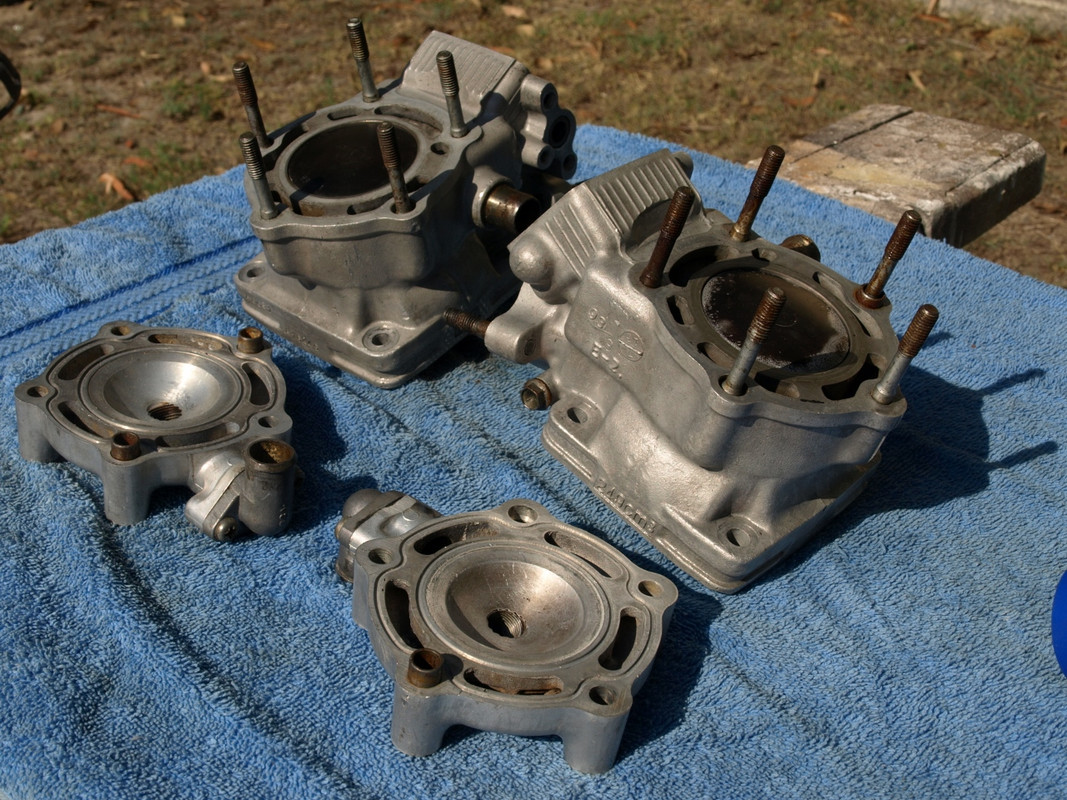

To update on what this is all based on. Here is my Aprilia RS250 300cc "Street" used kit that I got in 2012 and have finally fitted to my RGV engine (a Aprilia RS250 engine is simply a rebranded Suzuki RGV engine).

It is a full kit from the UK (Stan Stephens) that has a 61mm bore (std is 56mm) with Wiseco Pistons. So it's now a 61mm x 50.6mm Bore and Stroke 295.8cc engine. Thus the move to 350cc Classes.

It is supposed to make about the same peak power as my modded RGV 250, but with more power across the "lower" rpm.

This can then be modified further towards a Race Spec. But for now I just want to run it in Street/Pump Fuel Spec and have the allusive "One Good Run" I have been chasing for 10 years :) (Well several would be better)


Pete :D
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Stayt`ie wrote: Mon May 03, 2021 8:25 am Where is the dyno you use Pete ?,, reason I ask is, have a mate in Peterborough who travels down to Adelaide to get his dyno tuning done,, im thinking if there is one closer ???
Hey Ron

I was going to Lee's Spot On Motorcycles in Mt Pleasant/Adelaide Hills.http://www.lees-spoton.com.au/ They were good, however in my case I was doing the tuning, so I just needed them to operate the dyno and get a reading.

Others use Neville Lush Racing http://www.nevillelushracing.com/ to get Tuning done, but he is further south of Adelaide, relative to Peterborough. There are others but I have no experience with them.

This time I now have access to a Mainline Car Dyno virtually next door to me. (Mainline have confirmed Bikes can run on the model there and the owners are willing to help me out).

My bike fits with a adapter bracket and it's just to get a 300cc engine baseline curve and I can tweek the power jets under load to get my base 1150F peak EGTs (not interested in what the numbers are just looking at the relative changes as I move forward).

They can fit me in in about two weeks time. Things are moving forward again.

Pete
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Had a productive day getting the 300cc engine sorted.


Click here to learn how to add YouTube Videos to your phpBB forum

Pete :D
Last edited by AuotonomousRX on Thu May 20, 2021 4:12 pm, edited 1 time in total.
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
Stayt`ie
Posts: 1026
Joined: Fri May 13, 2005 11:47 pm
Location: Mackay

Re: APS/G 250

Post by Stayt`ie »

ya photo"s not showing Pete ???
First Australian to ride a motorcycle over 200mph at Bonneville,,,
User avatar
AuotonomousRX
Posts: 714
Joined: Wed Jan 06, 2010 10:05 pm
Location: Eyre Peninsula SA

Re: APS/G 250

Post by AuotonomousRX »

Stayt`ie wrote: Wed May 19, 2021 9:46 pm ya photo"s not showing Pete ???
Not sure what's going on?

I can see the video "thumbnail". I'll repost it.

Pete :D
Still trying to decide if I am a procrastinator

Pete :?
DLRA #866
User avatar
gennyshovel
Posts: 847
Joined: Tue Mar 29, 2005 10:10 am
Location: Broken Hill

Re: APS/G 250

Post by gennyshovel »

It's all still ok Pete,
Tiny DLRA# 484
Postiebike Racing , created & funded by TwoBob Engineering
